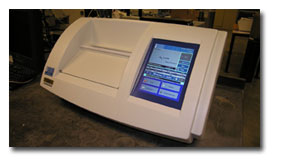

Rudolph Autopol III S2 Polarimeter

The polarimeter measures the optical activity of inorganic and organic compounds. Plane-polarized light is passed through a solution containing the compound of interest and the rotation of the light is measured. The degree of rotation is dependent on the structure and concentration of chiral molecules in solution.

Specifications

  • Optical Rotation, Specific Rotation, °Z Scale
  • Resolution: 0.001° Arc Optical Rotation, 0.01 Specific Rotation
  • Range: ±89° Arc Optical Rotation, ±999.99 Specific Rotation
  • Tungsten-halogen lamp: 589 nm (sodium) and 546 nm (mercury) wavelengths
  • Accepts standard polarimeter tubes up to 20 cm in length
